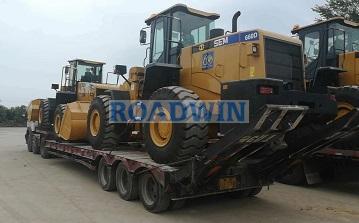

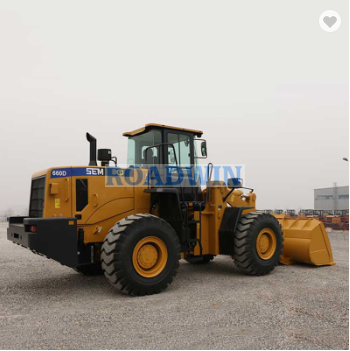

SEM 660D Wheel Loader

Main Specifications

Rated load capacity (Kg)

6000

Operating weight with standard bucket (Kg)

20000

Bucket capacities (M3)

3.3-5.5

Wheelbase (mm)

3350

Overall Dimensions L*W*H (mm)

8 414×3 370×3 458

Engine

Model

WD10G240

Rated power  (kW)

178

Rated speed  (r/min)

2000

Displacement   (L)

9.726

Operating Specifications

Dump clearance   (mm)

3048

Breakout Force  (kN)

183

Articulated angle (°)

38±1°

Hydraulic system

Implement system type

Single load sensing flow sharing system

System Pressure setting (Mpa)

18

Hydraulic cycle time (s)

9.7

Boom Raise time  (s)

5.3

Axle

Main drive type

Spiral bevel gear, single stage

Final drive reduction type

Planetary type, single stage

Rear - oscillating +/-  (°)

±11°

Steering system

System type

Flow amplifying

Steering pump type

Gear pump

System pressure setting  (MPa)

16

Steering angle L/R  ( °)

38 ±1°

Brake system

Service brake

Dry&caliper,Air-to-oil control

Parking brake

Drum-type shoe brake,spring applied & oil released

Transmission

Type

Counter shaft  /  Power shift

Transmission gears

F4/R4

Torque converter type

Single stage 3 elements

Maker & type

TR200

Forward I/ Reverse I   (km/h)

7.4 / 7.4

Forward II/ Reverse II (km/h)

14  /  14

Forward III/ Reverse III (km/h)

22  /   22

Forward IV/ Reverse IV (km/h)

38  /   38

Tires

Size

23.5-25

Type

Bias

Layers

20

Textured type

L3 /E3
