XCMG QY25K5-I Truck Crane

25ton crane
XCMG Truck crane
jib crane

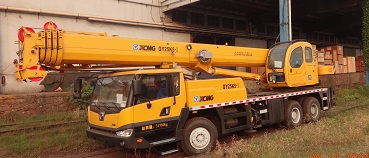

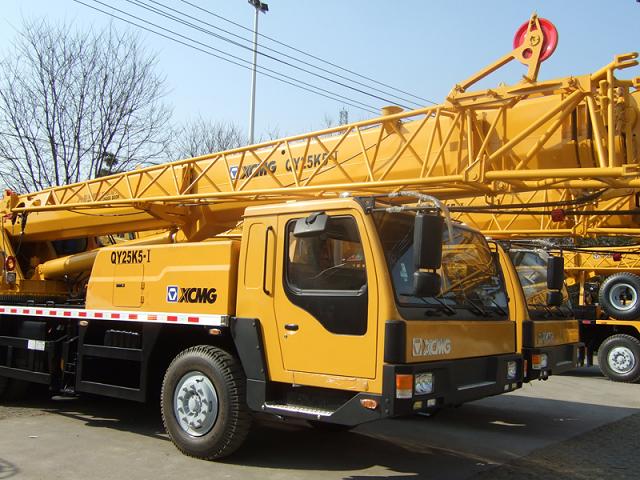

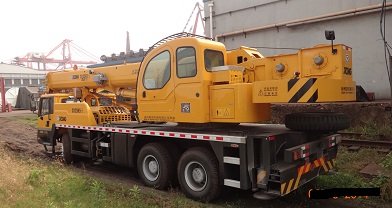

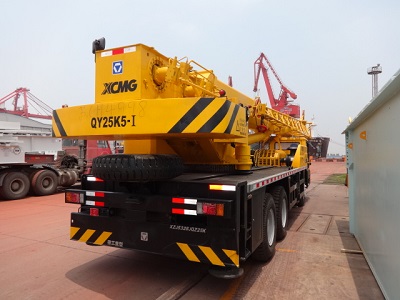

QY25K5-I Truck crane
INQUIRY

• Leading performance: the boom length in full extension is 39.5m, the performance leading in 5%. The grade ability is 40%, which make the machine have good road adaptability.
• The unique U boom and plug-in boom head make the load-carrying capacity more balanced, and lift more smoothly.
• The unique stretch and retract technique prevents the misoperation; the stretch and retract of the boom is safer and more reliable.
• The innovative jib system adopts embedded block, plug-in boom head and octagon jib, which has excellent lifting performance and safe and reliable lifting work.

Item			Unit
Dimensions	Total length	12300	mm
	Total width	2500	mm
	Total height	3350	mm
Weight	Operating Weight	31750	Kg
	Front axle load	6550	Kg
	Rear axle load	25200	Kg
Power	Engine model	SC8DK280Q3/WD615.329
	Engine power ratings	206/2200 213/2200	Kw(r/min)
	Engine torque ratings	1112/1400 1160/1400	N.m(r/min)
Travel	Max.travel diameter	80	Km/h
	Min.turning diameter	22	m
	Min.ground clearance	260	mm
	Approach angle	16	.
	Departure angle	13	.
	Max.gradeability	40	%
	Fuel consumption of 100km	37	L
Driving Parameters	Max.total lifting capacity	25	t
	Min. working radius	3000	mm
	Turning radius at swing table tail	3.065	m
	Max.lifting torque	961	Kn.m
	Basic boom lifting length	10.4	m
	Longest boom lifting length with secondary arm	47.8	m
	Longest boom lifting length	39.5	m
	Outrigger longitudinal distance span	5.14	m
	Outrigger lareral distance span	6	m
Working speed	Elevation duration for secondary boom	68	s
	Elevation duration for fully extended boom	150	s
	Max.rotation speed	2.5	r/min
	Max.speed for main winch	125	m/min
	Max.speed for auxiliary winch	125	m/min
