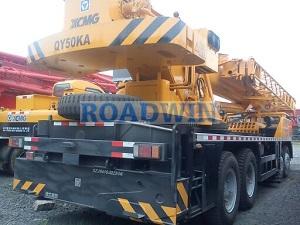

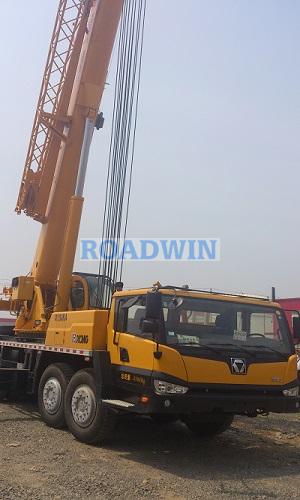

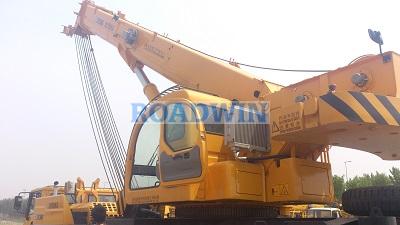

  • XCMG QY50KA Truck Crane
  • XCMG QY50KA Truck Crane
  • XCMG QY50KA Truck Crane
XCMG QY50KA Truck Crane XCMG QY50KA Truck Crane XCMG QY50KA Truck Crane

XCMG QY50KA Truck Crane

  • truck crane
  • xcmg crane
  • qy50ka lifting truck crane
  • truck mounted crane
  • INQUIRY

XCMG Truck Crane (QY50K-II) is one of the best performance truck crane. Cranes of the XCMG are very popular in the word. The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
The humanity design makes the cab and control cab more spacious, and easy to operate.
Six unique manufacturing technologies ensure the high quality.

Parameters

Classificatory Item Unit Parameter
Dimensions Overall length mm 13270
Overall width mm 2750
Overall height mm 3300
Weight Dead weight in travel state kg 39870
Front axle load kg 13935
Rear axle load kg 25935
Power Engine model WD615.46
Engine rated output kW/(r/min.) 266/2200
Engine rated torque N.m/(r/min.) 1460/1400
Travel Max. travel speed km/h 78
Min. turning diameter mm 24000
Min. ground clearance mm 251
Approach angle ° 16
Departure angle ° 10
Braking distance(at 30km/h) m 10
Max. gradeability % 46
Fuel consumption of per 100km L 48
Lifting performance Max.total rated lifting load t 50
Min. rated working radius m 3
Turning radius at swing table tail m 3.8
Max. load moment( Base boom) KN.m 1509
Fully extended boom KN.m 631
Outrigger extension distance
Lateral/Longitudinal m 6.6/5.45
Lifting height (Base boom) m 11.27
extend boom m 40.31
Fully-extend boom+Jib m 55.8
Jib offset ° 01530
Working speed Boom elevating time s 120
Boom full extending time s 184
Max. swing speed r/min 2
Outrigger beam extending/retracting synchronously s 40/42
Outrigger jack extending/retracting synchronously s 40/42
Main winch with full /no load m/min 70.8/118
Auxiliary winch with full /no load m/min 70.8/118
