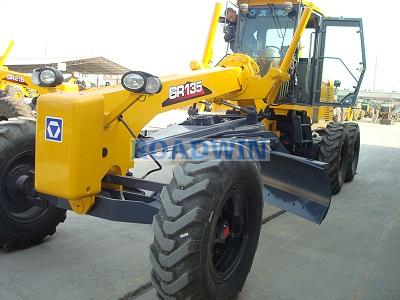

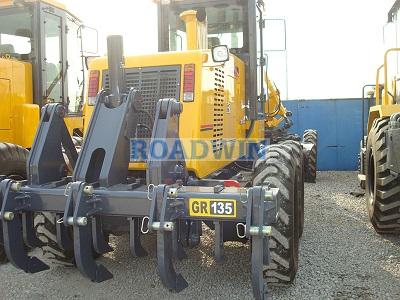

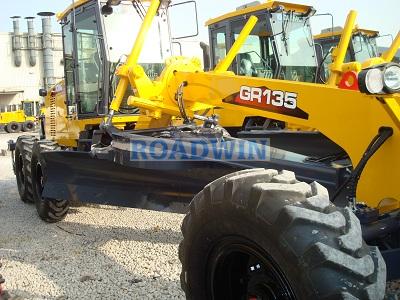

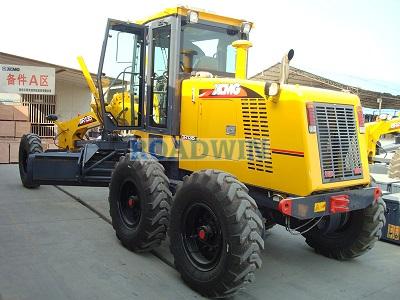

XCMG Brand GR135 Motor Grder

Basic specification

Engine model

6BT5.9

Rated power/speed

100/2200kw/rpm

Dimension(LxWxH)

8015×2380×3050mm

Operating weight(Standard)

11200kg

Performance specification

Travelling speed ,forward

5,8,13,20,30,42km/h

Travelling speed ,reverse

5,13,30km/h

Tractive force(f=0.75)

61.3KN

Max. grade ability

30%

Tire inflation pressure

300kPa

Working hydraulic pressure

16MPa

Transmission pressure

1.3~1.8MPa

Operating specification

Max. steering angle of front wheels

±49°

Max. lean angle of front wheels

±17°

Max. oscillation angle of front axle

±15°

Max. oscillation angle of balance box

16

Frame articulation angle

±27°

Min. turning radius using articulation

6.6m

Biade

Maximum lift above ground

410mm

Maximum depth of cutting

515mm

Maximum blade position angle

90°

Blade cutting angle

54°—90°

Circle reversing rotation

360°

Moldboard width X height

3710×610mm
