Feasures
New appearance.
The adopted articulated frame assists the front wheel to steer, featuring small turning radius and flexibility.
Electro-hydraulic controlled brake power shift gearbox includes 6 Forward gears, and 3 Reverse gears.
The adopted international matched hydraulic parts ensure the reliable operation.

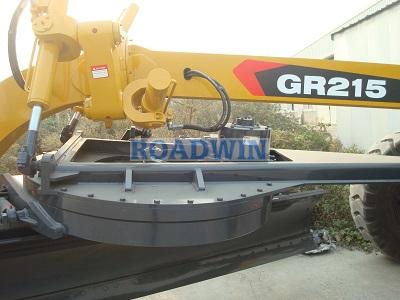

The blade movement is hydraulic controlled fully.
The rear axle is three-way drive axle with NO-SPIN self -locking differential.
The reasonable distribution of the adjustable operation panel, seat, lever and instrument guarantees the comfortable and convenient operation.
The luxury and beautiful cab features wide visibility and good sealing.
The machine can be equipped with front bulldozing plate, rear scarifier, front harrow and auto-leveling system.
Parameters
| MainTechnicalSpecifications | ||||

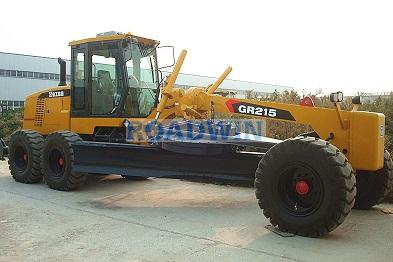

| Model | GR215 | |||
| Engine | Engine model | CTAA8.3/6CTA8.3 | ||
| Rated power/speed | kw/rpm | 153/2200 160/2200 | ||
| Traveling speed forward | km/h | 5,8,11,19,23,38 | ||
|
Performancespexification |
Traveling speed reverse | km/h | 5,11,23 | |
| (f=0.8)Traclive force | kN | 90 | ||
| Max.gradeability | % | 30 | ||
|
Min.turning radius using articulation |
m | 7.3 | ||
| Maximum lift above ground | mm | 450 | ||
|
Operatingspecification |
Maximum depth of cutting | mm | 500 | |
| Maximum blade position angle | 90 | |||
| Blade cutting angle | 28~70 | |||
| Blade | Circle reversing rotation | 360 | ||
| Molo board width x height | mm | 3965×610/4270×610 | ||
| Dimension(LxWxH) | mm | 8970x2625x3470 | ||
| Operating weight(Standard) | kg |
16500 |
||
